Product Instruction:

The supercharged air cabinet is widely used due to its flexible structure, low noise, stable operation, good wind pressure and wind pressure adjustment, and long service life.
It can be applied to the ventilation system of civil buildings, and can also be applied to the fire-fighting air supply of house buildings, and the pressurized air supply of the air-cleaning workshop.

Features:

1. The structure of the pressurized air cabinet is compact and flexible, and the material selection is reasonable, ensuring stable operation of the machine body, low noise, large wind pressure and long service life;

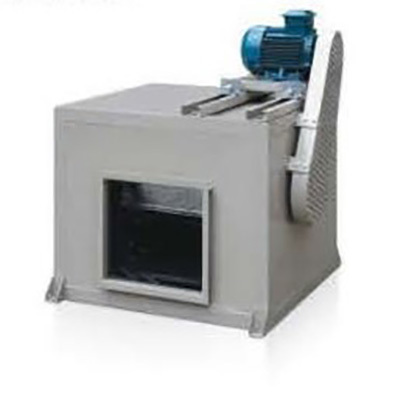

2. Different configuration combinations can be selected according to different places of use. There are two types of motors: external and built-in. The motor is built-in for general exhaust and exhaust. The motor cover is suitable for ordinary exhaust and exhaust. Can be used for fire ventilation.

3. According to the wind pressure of the required air volume, adjust the fan speed within the applicable range of motor power to achieve the desired effect.

4. Different air ducts in the direction of the air inlet and outlet can be customized according to different ventilation duct layouts;

5. Using primary filter, medium efficiency filtration system

6. EVA sealing material, high sealing performance

7. Using imported electronic components, reliable performance

8. Modular design, easy assembly and transportation


Instructions:

Connect 220V or 380V/50Hz power supply, turn on the switch, confirm the fan operation


Configuration instructions:

1. Main material: color steel plate + aluminum alloy material + angle steel inner support or full cold rolled steel plate spray

2. Air volume: customized according to requirements

3. Special requirements: can be equipped with infrared sterilization, odor removal, static elimination
